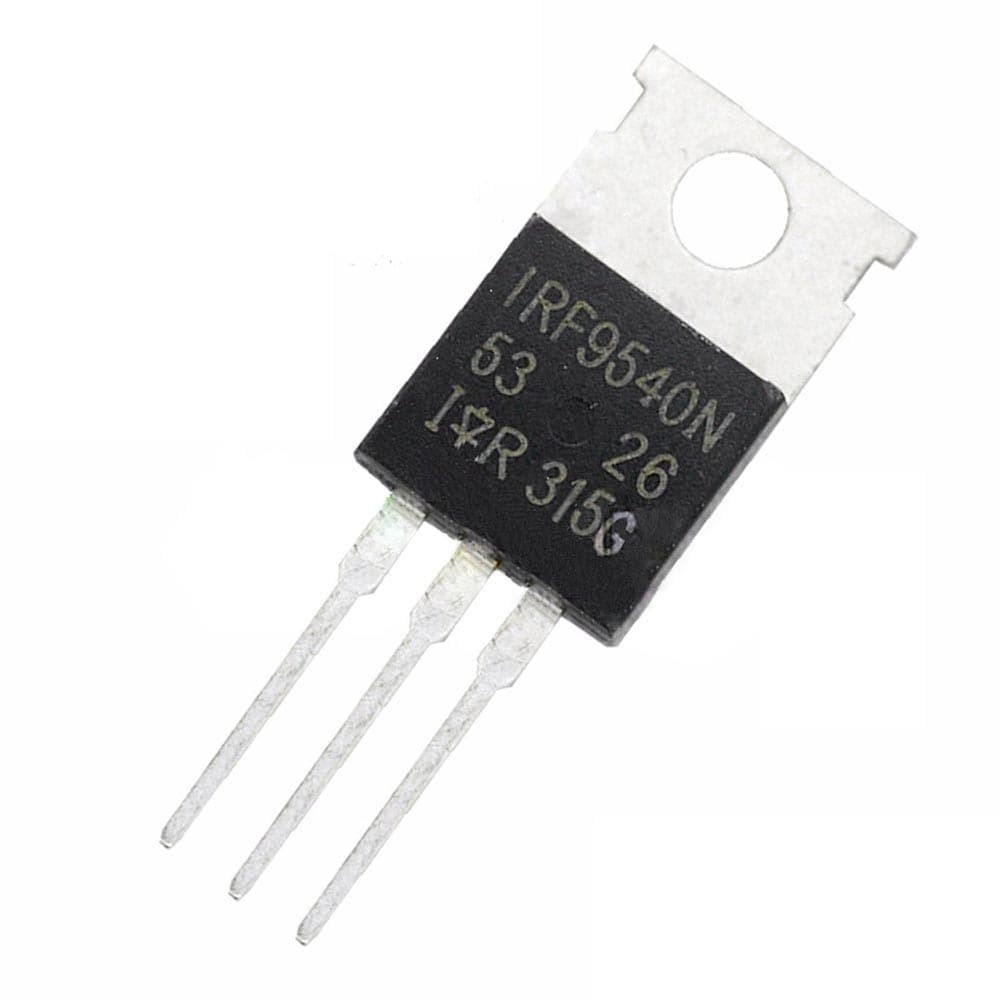

IRF9540N MOSFET

Product Description

✅ General Specification: ➡️ Component Type: Power MOSFET ➡️ Model: IRF9540N ➡️ Transistor Type: P-Channel Enhancement Mode ➡️ Drain-Source Voltage (VDS): -100V ➡️ Continuous Drain Current (ID): Up to -23A (with proper thermal conditions) ➡️ RDS(on): ≤ 0.117Ω (at VGS = -10V) ➡️ Gate-Source Voltage (VGS): ±20V ➡️ Gate Threshold Voltage: -2V to -4V (typical range) ➡️ Gate Drive: Suitable for standard MOSFET gate-drive circuits ➡️ High-Speed Switching: Yes ➡️ Package Type: TO-220AB ➡️ Number of Pins: 3 ➡️ Pin Configuration: Gate – Drain – Source ➡️ Operating Temperature: Up to +175°C (junction, manufacturer dependent) ➡️ Compatible With: Arduino, ESP32, STM32, motor control circuits, power supplies, battery systems ➡️ Applications: High-side switching, DC motor control, reverse-polarity protection, power management, load switching, DC-DC converters, battery circuits, DIY electronics ⚠️ Note: IRF9540N is a P-channel MOSFET designed for high-side switching applications. For high-current operation, use an appropriate heatsink and suitable gate-drive circuitry.
