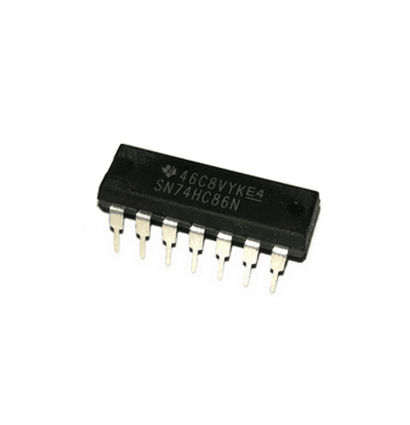

IC 7486 (Quad 2-Input XOR Gate)

Product Description

✅ General Specification: ➡️ IC Type: Quad 2-Input Exclusive-OR (XOR) Gate ➡️ Logic Family: TTL (74 Series) ➡️ Supply Voltage (VCC): 5V DC (4.75V – 5.25V) ➡️ Number of Gates: 4 independent XOR gates ➡️ Inputs per Gate: 2 ➡️ Logic Levels:   • Logic LOW (0): ≤ 0.8V   • Logic HIGH (1): ≥ 2.0V ➡️ Propagation Delay: ~10 ns (typical) ➡️ Power Consumption: Low (TTL standard) ➡️ Output Drive Capability: TTL compatible ➡️ Operating Temperature: 0°C to 70°C ➡️ Package Type: DIP-14 ➡️ Pin Count: 14 pins ➡️ Pin Spacing: 2.54 mm (Breadboard friendly) ➡️ Weight: ~1 gram 🧠 Logic Function (XOR Truth): ➡️ Output = HIGH when inputs are different ➡️ Output = LOW when inputs are same
