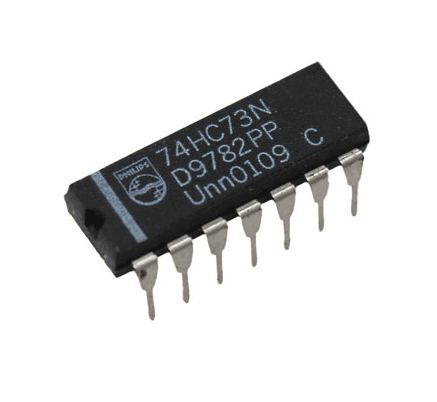

7473

Product Description

✅ General Specification: ➡️ IC Type: Dual JK Flip-Flop ➡️ Logic Family: TTL (74 Series) ➡️ Number of Flip-Flops: 2 JK Flip-Flops per IC ➡️ Input Pins: J, K, CLK (Clock), PRE (Preset), CLR (Clear) ➡️ Output Pins: Q and Q̅ (Complement) ➡️ Trigger Type: Negative Edge Triggered ➡️ Operating Voltage: 4.75V – 5.25V DC (Typical: 5V) ➡️ Input Logic Level: TTL Compatible ➡️ Output Logic Level: TTL ➡️ Propagation Delay: ~25 ns (typical) ➡️ Power Consumption: Low (TTL standard) ➡️ Operating Temperature: 0°C to 70°C ➡️ Package Type: DIP-14 ➡️ Mounting Type: Through Hole ➡️ Dimensions: Standard DIP IC size ➡️ Weight: ~1.5 grams 🛠 Applications: ✔️ Counters & frequency dividers ✔️ Sequential logic & state machines ✔️ Data storage & latching circuits ✔️ Control circuits & timing applications ✔️ Educational & laboratory digital experiments 🔌 Pin Configuration Highlights: ➡️ Flip-Flop 1: J1, K1, CLK1, PRE1, CLR1 → Q1, Q̅1 ➡️ Flip-Flop 2: J2, K2, CLK2, PRE2, CLR2 → Q2, Q̅2 ➡️ Power Pins: VCC (5V), GND
