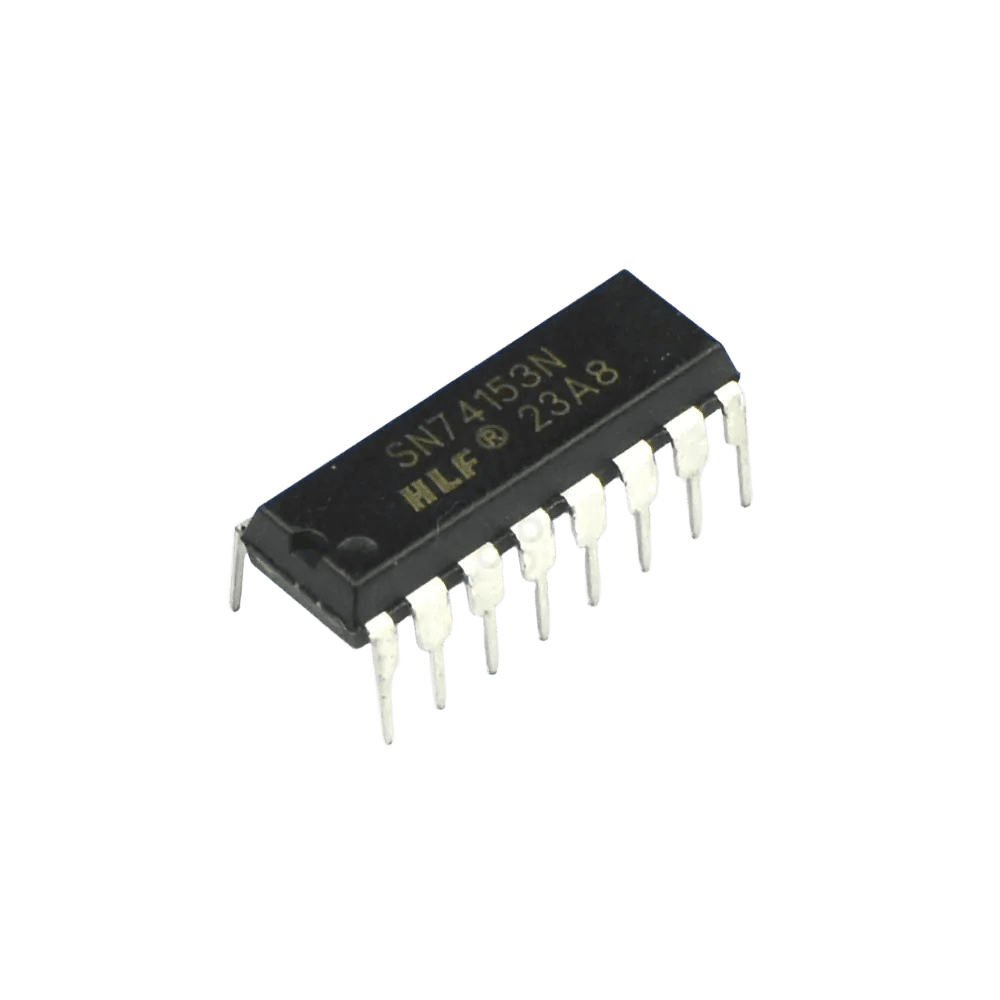

74153

Product Description

✅ General Specification: ➡️ IC Type: Dual 4-to-1 Data Selector / Multiplexer ➡️ Logic Family: TTL (74 Series) ➡️ Number of Multiplexers: 2 independent 4-to-1 MUX ➡️ Data Inputs: 8 total (4 per MUX) ➡️ Select Lines: 2 common Select Inputs (A, B) ➡️ Enable Inputs: 2 Enable Pins (Active LOW, one per MUX) ➡️ Output Lines: 2 Outputs (Y1, Y2) ➡️ Operating Voltage: 4.75V – 5.25V DC (Typical: 5V) ➡️ Input Logic Level: TTL Compatible ➡️ Output Logic Level: TTL ➡️ Propagation Delay: ~20 ns (typical) ➡️ Power Consumption: TTL standard, low power ➡️ Operating Temperature: 0°C to 70°C ➡️ Package Type: DIP-16 ➡️ Mounting Type: Through Hole ➡️ Dimensions: Standard DIP IC size ➡️ Weight: ~1.5 grams 🛠 Applications: ✔️ Data routing & signal selection ✔️ Microprocessor / microcontroller interfacing ✔️ Logic function generation ✔️ Digital communication systems ✔️ Educational digital electronics labs 🔌 Pin Configuration Highlights: ➡️ Select Inputs: A, B (Common to both MUX) ➡️ MUX-1: Inputs 1C0–1C3 → Output 1Y, Enable 1G ➡️ MUX-2: Inputs 2C0–2C3 → Output 2Y, Enable 2G ➡️ Power Pins: VCC (5V), GND
