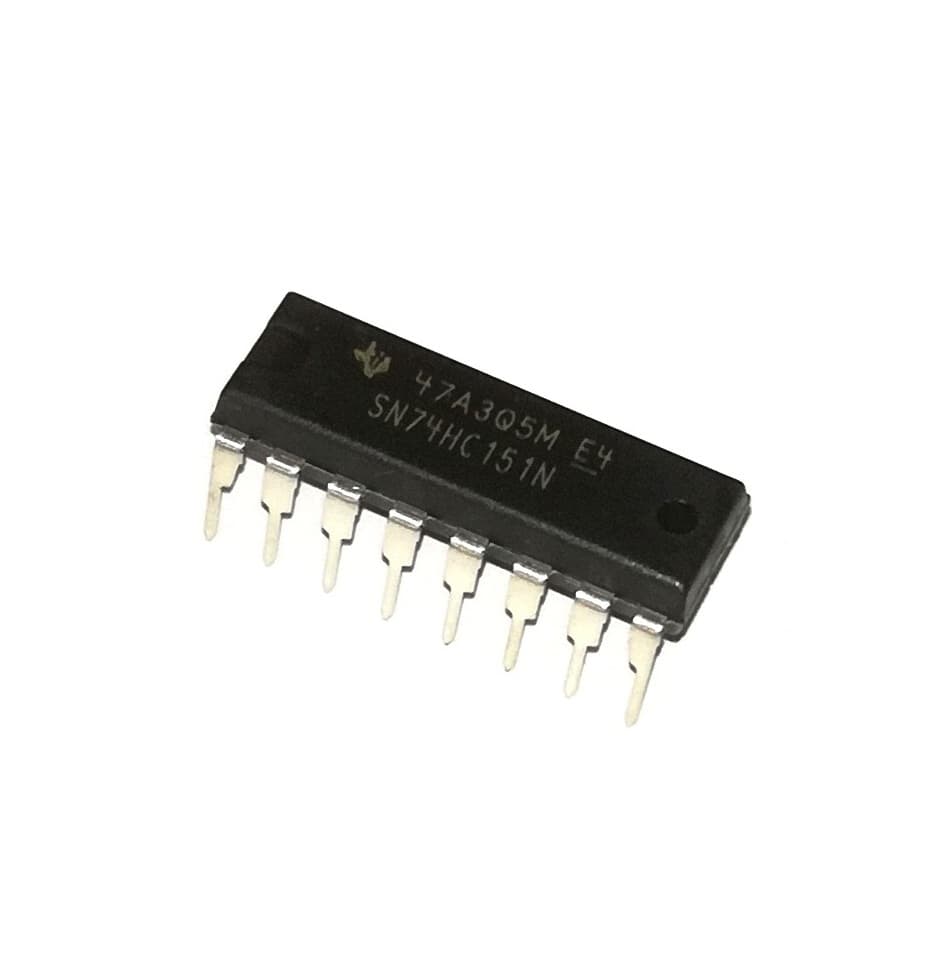

74151

Product Description

✅ General Specification: ➡️ IC Type: 8-to-1 Data Selector / Multiplexer ➡️ Logic Family: TTL (74 Series) ➡️ Input Lines: 8 Data Inputs (D0 – D7) ➡️ Select Lines: 3 Select Inputs (A, B, C) ➡️ Enable Input: 1 Enable Pin (Active LOW) ➡️ Output Lines: Y (True Output) & Ȳ (Complement Output) ➡️ Operating Voltage: 4.75V – 5.25V DC (Typical: 5V) ➡️ Input Logic Level: TTL Compatible ➡️ Output Logic Level: TTL ➡️ Propagation Delay: ~20 ns (typical) ➡️ Power Consumption: TTL standard, low power ➡️ Operating Temperature: 0°C to 70°C ➡️ Package Type: DIP-16 ➡️ Mounting Type: Through Hole ➡️ Dimensions: Standard DIP IC size ➡️ Weight: ~1.5 grams 🛠 Applications: ✔️ Data selection & routing ✔️ Digital communication systems ✔️ Microprocessor & microcontroller interfacing ✔️ Logic function generation ✔️ Educational digital electronics labs 🔌 Pin Configuration Highlights: ➡️ Data Inputs: D0 – D7 ➡️ Select Inputs: A, B, C ➡️ Enable: G (Active LOW) ➡️ Outputs: Y, Ȳ ➡️ Power Pins: VCC (5V), GND
