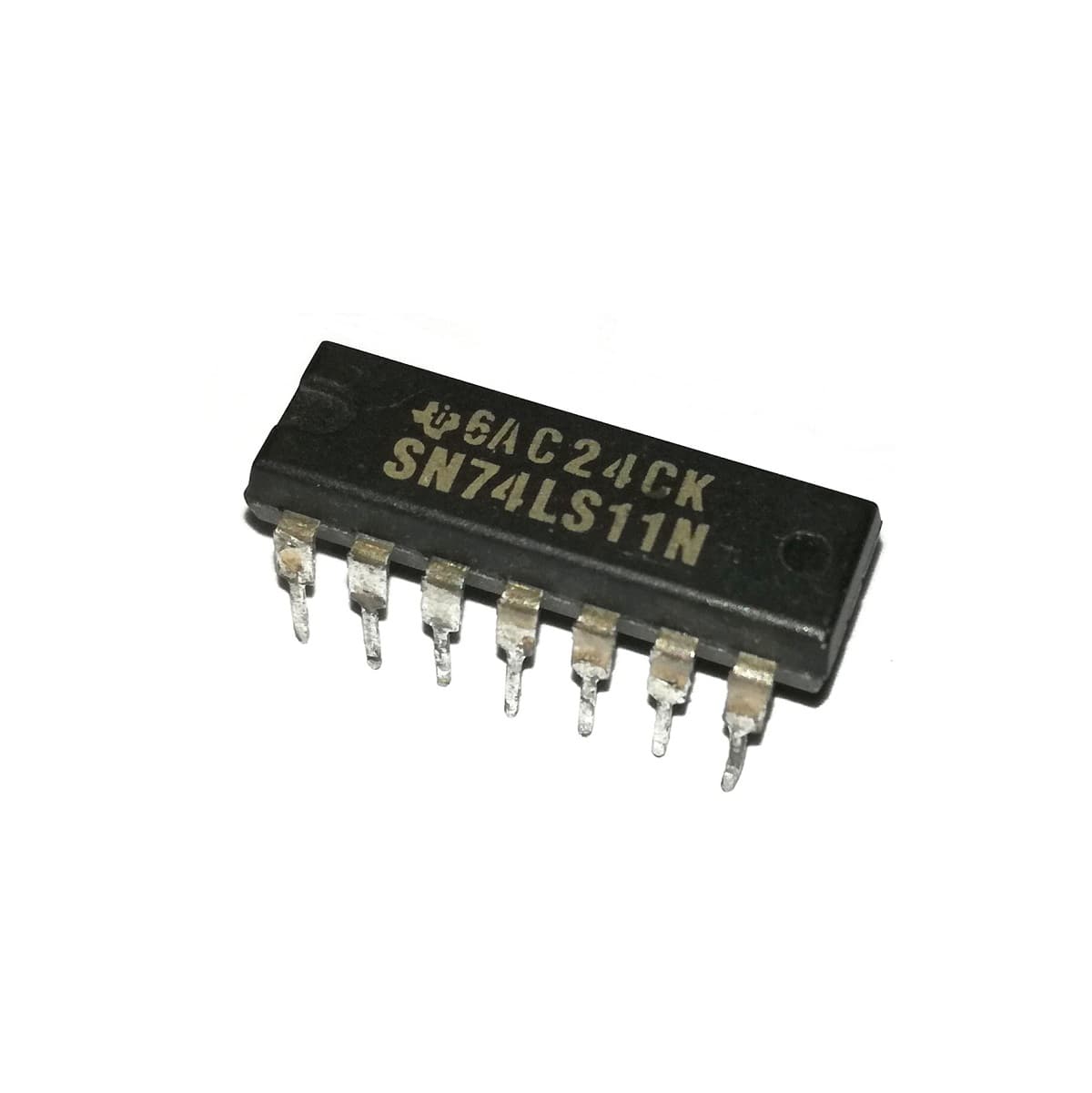

7411

Product Description

✅ General Specification: ➡️ IC Type: Triple 3-Input AND Gate ➡️ Logic Family: TTL (74 Series) ➡️ Number of Gates: 3 AND gates per IC ➡️ Inputs per Gate: 3 Inputs ➡️ Operating Voltage: 4.75V – 5.25V DC (Typical: 5V) ➡️ Input Logic Level: TTL Compatible ➡️ Output Logic Level: TTL ➡️ Propagation Delay: ~10 ns (typical) ➡️ Power Consumption: Low (TTL standard) ➡️ Operating Temperature: 0°C to 70°C ➡️ Package Type: DIP-14 ➡️ Mounting Type: Through Hole ➡️ Dimensions: Standard DIP IC size ➡️ Weight: ~1.2 grams 🛠 Applications: ✔️ Digital logic circuits ✔️ Logic gating & signal control ✔️ Microprocessor & microcontroller interfacing ✔️ Educational & laboratory experiments ✔️ Control & automation systems 🔌 Pin Configuration Highlights: ➡️ Inputs: A1, B1, C1 / A2, B2, C2 / A3, B3, C3 ➡️ Outputs: Y1, Y2, Y3 ➡️ Power Pins: VCC (5V), GND
