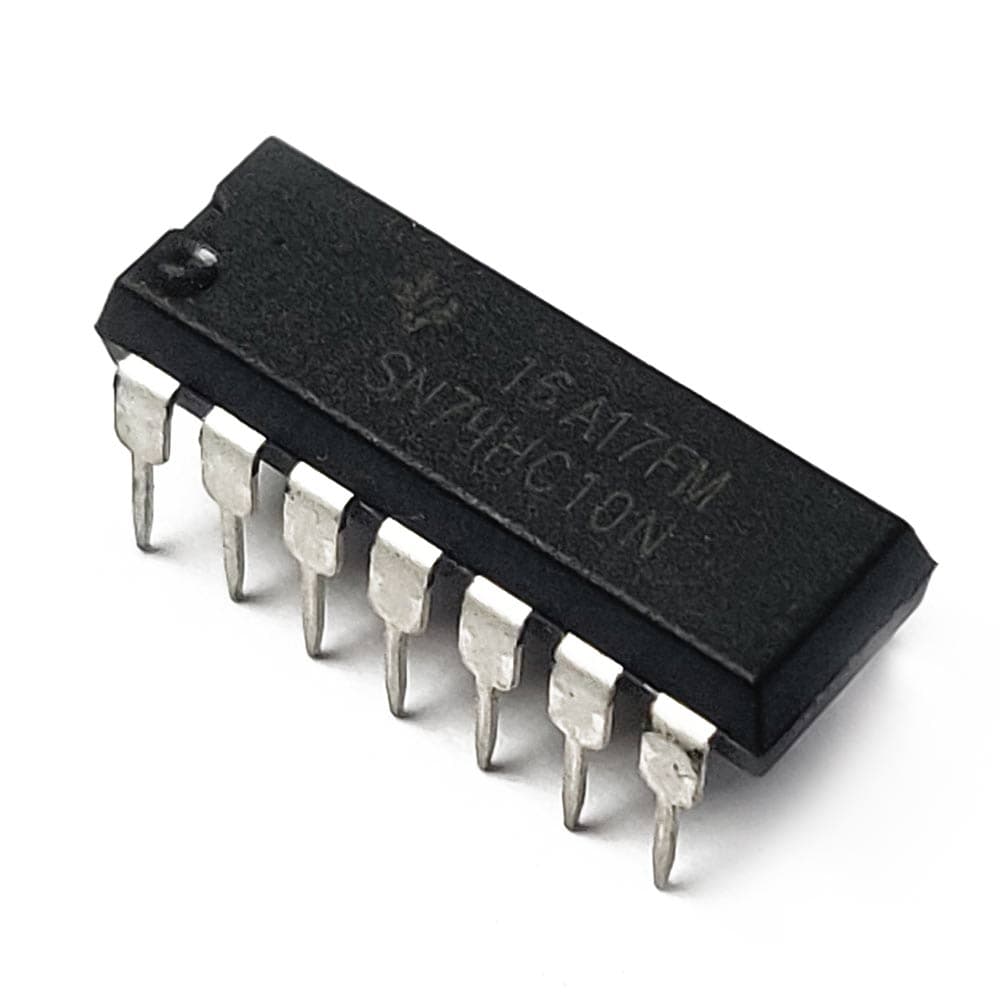

7410

Product Description

✅ General Specification: ➡️ IC Type: Triple 3-Input NAND Logic Gate ➡️ Logic Family: TTL (74 Series) ➡️ Supply Voltage (VCC): 5V DC (4.75V – 5.25V) ➡️ Number of Gates: 3 independent NAND gates ➡️ Inputs per Gate: 3 ➡️ Logic Function: NAND (NOT-AND) ➡️ Logic Levels:   • Logic LOW (0): ≤ 0.8V   • Logic HIGH (1): ≥ 2.0V ➡️ Propagation Delay: ~10 ns (typical) ➡️ Power Consumption: Low (Standard TTL) ➡️ Output Drive Capability: TTL compatible ➡️ Operating Temperature: 0°C to 70°C ➡️ Package Type: DIP-14 ➡️ Pin Count: 14 pins ➡️ Pin Spacing: 2.54 mm (Breadboard compatible) ➡️ Weight: ~1 gram 🧠 Logic Function (3-Input NAND): ➡️ Output = LOW only when all three inputs are HIGH ➡️ Output = HIGH for all other input combinations
