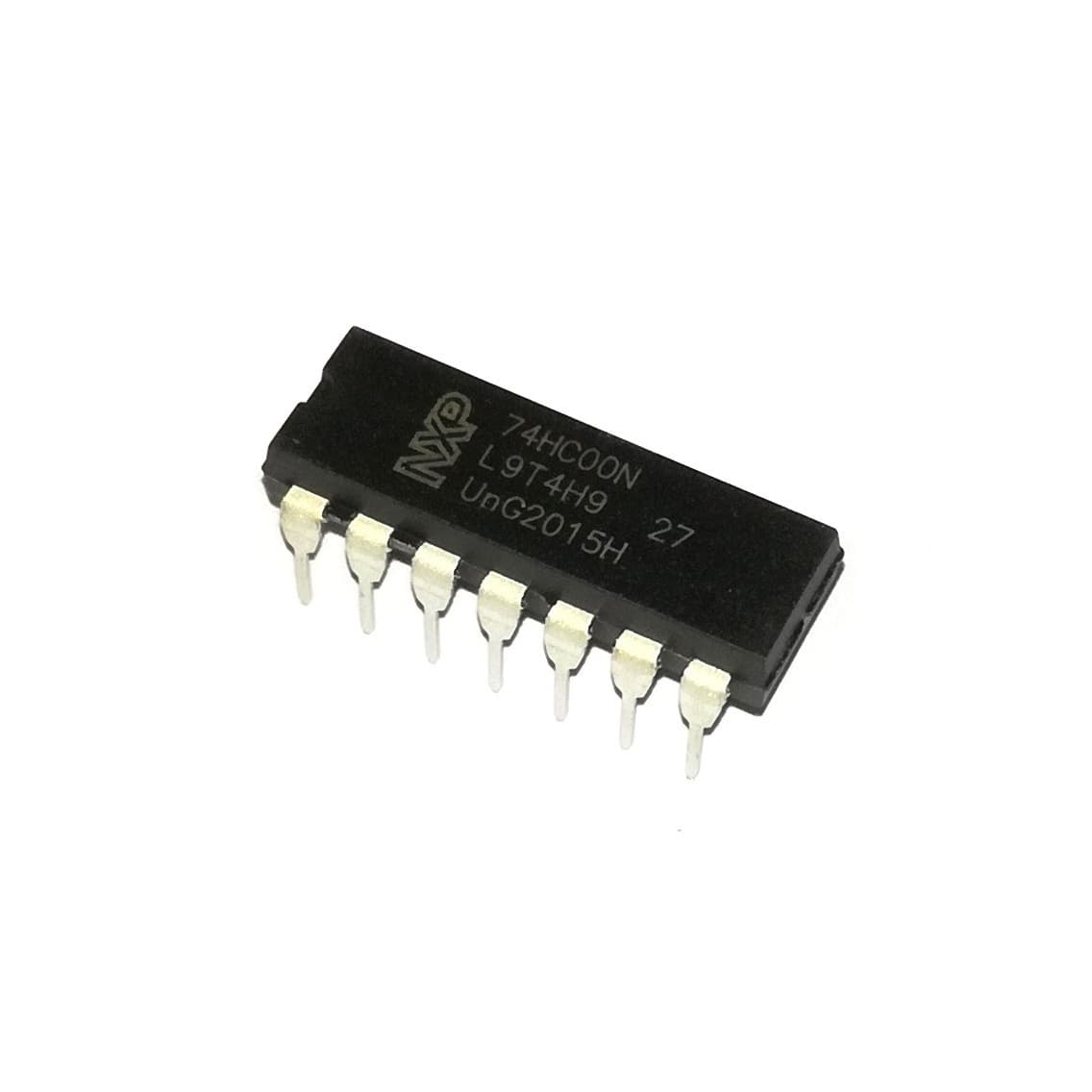

7400

Product Description

✅ General Specification: ➡️ IC Type: 7400 Series Logic IC ➡️ Logic Function: Quad 2-Input NAND Gates ➡️ Number of Gates: 4 ➡️ Inputs per Gate: 2 ➡️ Operating Voltage: 4.75V – 5.25V DC (TTL Compatible) ➡️ Logic Family: TTL (Transistor-Transistor Logic) ➡️ Output Type: Standard TTL Output ➡️ Propagation Delay: ~10 ns (typical) ➡️ Power Consumption: Low (TTL Standard) ➡️ Package Type: DIP-14 ➡️ Pin Configuration: 14-pin Dual In-Line Package ➡️ Operating Temperature: 0°C to +70°C ➡️ Applications: Digital logic circuits, counters, flip-flops, educational labs, DIY projects
