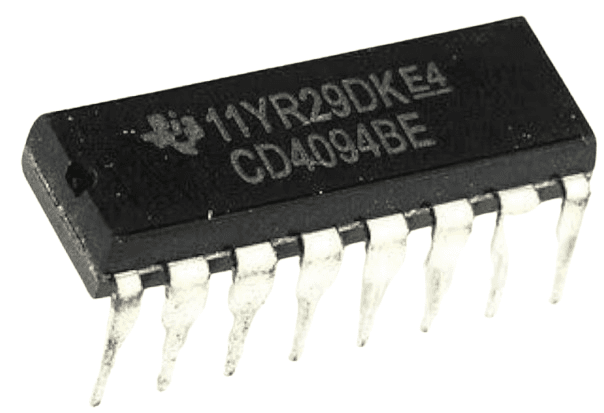

IC 4094 (8-Bit Shift Register with Latch)

Product Description

✅ General Specification: ➡️ IC Type: CMOS Logic IC ➡️ IC Number: CD4094 ➡️ Logic Function: 8-Stage Shift Register with Latch (Serial-In Parallel-Out) ➡️ Number of Stages: 8 ➡️ Shift Type: Serial In, Parallel Out (SIPO) ➡️ Output Type: Latched 8-bit outputs ➡️ Operating Voltage: 3V – 15V DC ➡️ Logic Family: CMOS 4000 Series ➡️ Low Power Consumption: Yes ➡️ Package Type: DIP-16 ➡️ Pin Pitch: 2.54 mm ➡️ Clock Input: Positive-edge triggered ➡️ Output Control: Strobe / Enable controlled ➡️ High Noise Immunity: Yes ➡️ Operating Temperature: −55°C to +125°C ➡️ Compatible With: CMOS logic circuits, microcontrollers (Arduino, ESP32, STM32) ➡️ Applications: LED display control, data storage, serial-to-parallel conversion, shift register systems, digital counters, DIY electronics, educational projects
