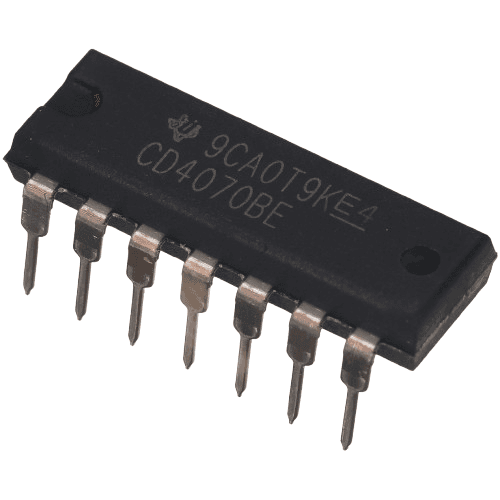

IC 4070 (Quad 2-Input XOR Gate)

Product Description

✅ General Specification: ➡️ IC Type: CMOS Logic IC ➡️ IC Number: CD4070 ➡️ Logic Function: Quad 2-Input Exclusive-OR (XOR) Gate ➡️ Number of Gates: 4 ➡️ Inputs per Gate: 2 ➡️ Operating Voltage: 3V – 15V DC ➡️ Logic Family: CMOS 4000 Series ➡️ Low Power Consumption: Yes ➡️ Package Type: DIP-14 ➡️ Pin Pitch: 2.54 mm ➡️ High Noise Immunity: Yes ➡️ Propagation Delay: Low (CMOS standard) ➡️ Operating Temperature: −55°C to +125°C ➡️ Output Type: CMOS Logic HIGH/LOW ➡️ Compatible With: CMOS logic circuits, TTL interfacing (with level matching) ➡️ Applications: Digital comparators, parity generators, arithmetic circuits, logic control systems, DIY electronics, educational experiments
