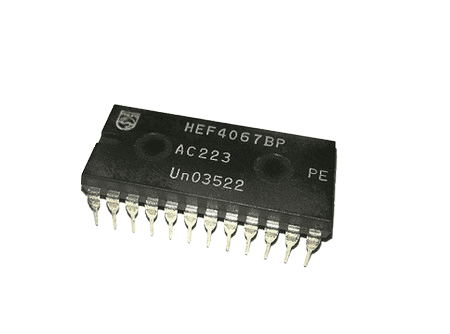

IC 4067

Product Description

✅ General Specification: ➡️ IC Type: CMOS Logic IC ➡️ IC Number: CD4067 ➡️ Logic Function: 16-Channel Analog Multiplexer / Demultiplexer ➡️ Number of Channels: 16 (1-of-16) ➡️ Control Inputs: 4-bit Binary Address (S0–S3) ➡️ Enable Pin: Yes (Active LOW) ➡️ Signal Type: Analog & Digital ➡️ On Resistance: ~70Ω (at 10V supply) ➡️ Switching Speed: Fast (CMOS level) ➡️ Operating Voltage: 3V – 15V DC ➡️ Logic Family: CMOS 4000 Series ➡️ Low Power Consumption: Yes ➡️ Package Type: DIP-24 ➡️ Pin Pitch: 2.54 mm ➡️ High Noise Immunity: Yes ➡️ Operating Temperature: −55°C to +125°C ➡️ Compatible With: CMOS, TTL, microcontrollers (Arduino, STM32, Raspberry Pi) ➡️ Features: Bidirectional signal switching, low leakage current ➡️ Applications: Signal multiplexing, sensor expansion, analog input selection, audio switching, data acquisition systems, DIY electronics, educational projects
