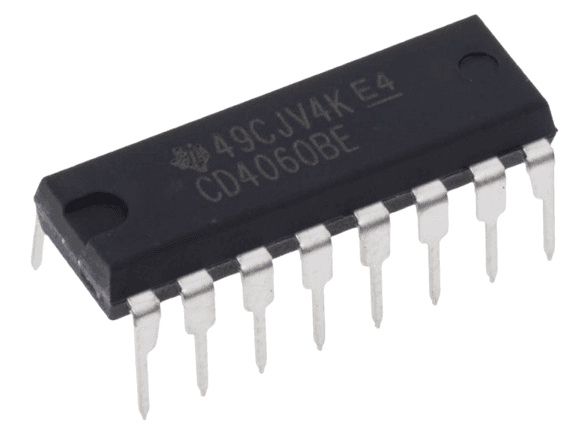

IC 4060

Product Description

✅ General Specification: ➡️ IC Type: CMOS Logic IC ➡️ IC Number: CD4060 ➡️ Logic Function: 14-Stage Binary Counter with Oscillator ➡️ Counter Type: Asynchronous (Ripple) ➡️ Number of Stages: 14 ➡️ Maximum Count: 2¹⁴ (16,384 states) ➡️ Built-in Oscillator: Yes (RC or Crystal controlled) ➡️ Oscillator Input: External resistor & capacitor or crystal ➡️ Reset Type: Asynchronous Master Reset ➡️ Operating Voltage: 3V – 15V DC ➡️ Logic Family: CMOS 4000 Series ➡️ Low Power Consumption: Yes ➡️ Package Type: DIP-16 ➡️ Pin Pitch: 2.54 mm ➡️ Maximum Clock Frequency: Up to ~8 MHz (at 10V) ➡️ High Noise Immunity: Yes ➡️ Operating Temperature: −55°C to +125°C ➡️ Compatible With: CMOS & TTL logic (with level matching) ➡️ Applications: Timers, digital clocks, frequency division, delay generators, LED flashers, alarm circuits, oscillators, educational & DIY electronics projects
