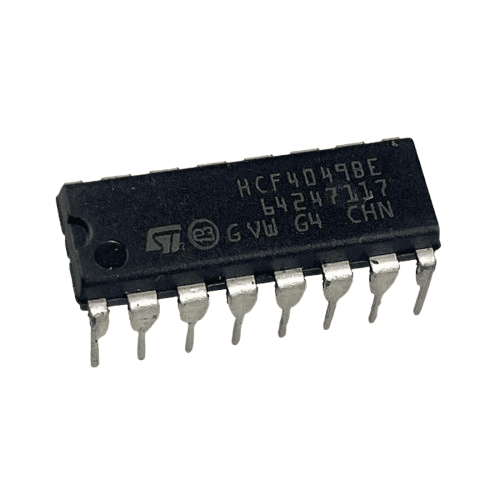

IC 4049

Product Description

✅ General Specification: ➡️ IC Type: CMOS Logic IC ➡️ IC Number: CD4049 ➡️ Logic Function: Hex Inverter / Buffer ➡️ Number of Inverters: 6 ➡️ Output Type: Non-inverting buffer & inverting output (unbuffered) ➡️ Logic Family: CMOS 4000 Series ➡️ Operating Voltage: 3V – 15V DC ➡️ Input Compatibility: CMOS & TTL (with proper biasing) ➡️ Low Power Consumption: Yes ➡️ Package Type: DIP-16 ➡️ Pin Pitch: 2.54 mm ➡️ High Noise Immunity: Yes ➡️ Propagation Delay: Low (for CMOS logic) ➡️ Operating Temperature: −55°C to +125°C ➡️ Output Drive Capability: Moderate (buffered outputs) ➡️ Features: Level shifting capability, signal buffering ➡️ Compatible With: Logic level conversion and signal conditioning ➡️ Applications: Logic level shifting, signal inversion, waveform shaping, buffering digital signals, interfacing TTL to CMOS, DIY electronics, educational projects
