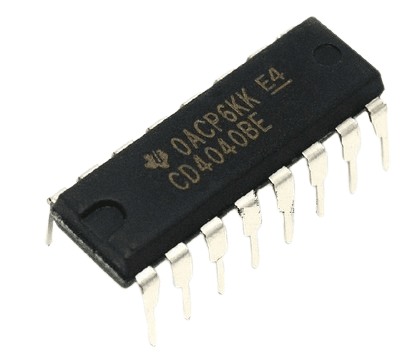

IC 4040

Product Description

✅ General Specification: ➡️ IC Type: CMOS Logic IC ➡️ IC Number: CD4040 ➡️ Logic Function: 12-Stage Binary Ripple Counter ➡️ Counter Type: Asynchronous (Ripple) ➡️ Number of Flip-Flops: 12 ➡️ Counting Capacity: Up to 2¹² (4096 states) ➡️ Clock Input: Single clock (CP) ➡️ Reset Type: Asynchronous Master Reset ➡️ Operating Voltage: 3V – 15V DC ➡️ Logic Family: CMOS 4000 Series ➡️ Low Power Consumption: Yes ➡️ Package Type: DIP-16 ➡️ Pin Pitch: 2.54 mm ➡️ Maximum Clock Frequency: Up to ~8 MHz (at 10V) ➡️ High Noise Immunity: Yes ➡️ Operating Temperature: −55°C to +125°C ➡️ Compatible With: CMOS & TTL logic (with proper level shifting) ➡️ Applications: Frequency division, digital clocks, event counters, timers, sequence generators, LED chasers, educational & DIY electronics projects
