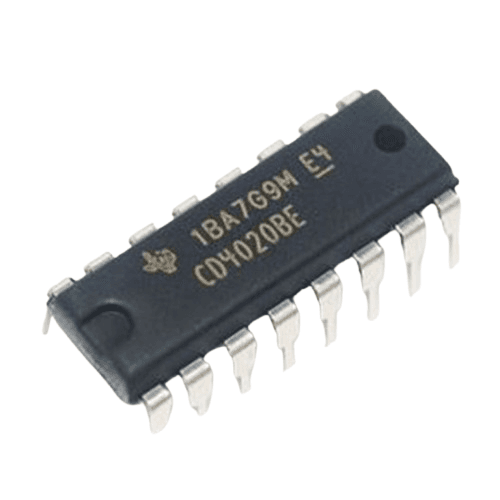

IC 4020

Product Description

✅ General Specification: ➡️ IC Type: CMOS Logic IC ➡️ IC Number: CD4020 ➡️ Logic Function: 14-Stage Binary Ripple Counter ➡️ Counter Type: Asynchronous (Ripple) ➡️ Number of Stages: 14 ➡️ Maximum Count: 16,384 (2¹⁴) ➡️ Clock Input: Positive edge triggered ➡️ Reset Type: Asynchronous Master Reset ➡️ Operating Voltage: 3V – 15V DC ➡️ Logic Family: CMOS 4000 Series ➡️ Low Power Consumption: Yes ➡️ Package Type: DIP-16 ➡️ Pin Pitch: 2.54 mm ➡️ High Noise Immunity: Yes ➡️ Operating Temperature: −55°C to +125°C ➡️ Output Type: Binary (Q1–Q14) ➡️ Compatible With: CMOS & TTL (with level shifting) ➡️ Applications: Frequency division, digital counters, timers, clock generation, LED chasers, DIY electronics, educational projects
