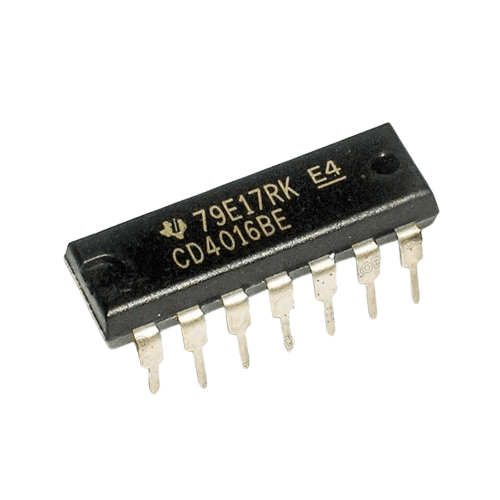

IC 4016

Product Description

✅ General Specification: ➡️ IC Type: CMOS Logic IC ➡️ IC Number: CD4016 ➡️ Logic Function: Quad Bilateral Analog Switch ➡️ Number of Switches: 4 ➡️ Operating Voltage: 3V – 15V DC ➡️ Logic Family: CMOS 4000 Series ➡️ Low Power Consumption: Yes ➡️ Package Type: DIP-14 ➡️ Pin Pitch: 2.54 mm ➡️ Control Input: Digital control for each switch ➡️ On Resistance: ~80Ω (at 10V supply) ➡️ Operating Temperature: −55°C to +125°C ➡️ High Noise Immunity: Yes ➡️ Compatible With: Analog & digital signal switching ➡️ Applications: Signal multiplexing, audio switching, waveform routing, sample & hold circuits, DIY electronics, educational experiments
