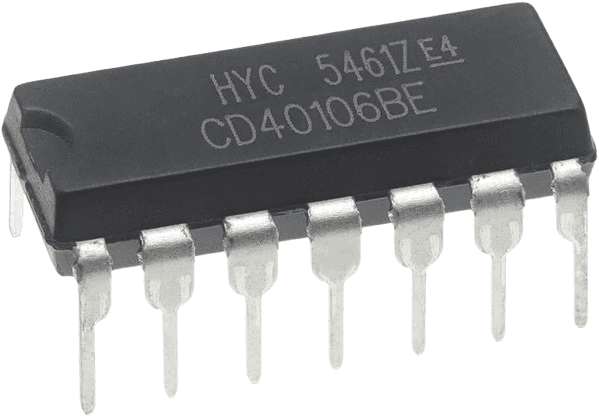

IC 40106 (Hex Schmitt Trigger Inverter)

Product Description

✅ General Specification: ➡️ IC Type: CMOS Logic IC ➡️ IC Number: CD40106 ➡️ Logic Function: Hex Schmitt Trigger Inverter ➡️ Number of Gates: 6 Inverters ➡️ Input Type: Schmitt Trigger (Hysteresis Input) ➡️ Operating Voltage: 3V – 15V DC ➡️ Logic Family: CMOS 4000 Series ➡️ Low Power Consumption: Yes ➡️ Package Type: DIP-14 ➡️ Pin Pitch: 2.54 mm ➡️ High Noise Immunity: Very High (Schmitt Trigger inputs) ➡️ Propagation Delay: Low (CMOS standard) ➡️ Operating Temperature: −55°C to +125°C ➡️ Output Type: CMOS Logic HIGH/LOW ➡️ Compatible With: CMOS logic circuits, oscillators, microcontroller interfacing ➡️ Applications: Oscillators, waveform generators, pulse shaping circuits, signal conditioning, debounce circuits, LED blinkers, DIY electronics, educational experiments
